Rita bilder

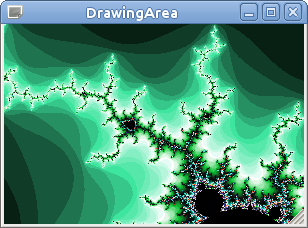

There is a method for drawing from a Gdk::Pixbuf to a Cairo::Context. A Gdk::Pixbuf buffer is a useful wrapper around a collection of pixels, which can be read from files, and manipulated in various ways.

Probably the most common way of creating Gdk::Pixbufs is to use Gdk::Pixbuf::create_from_file() or Gdk::Pixbuf::create_from_resource(), which can read an image file, such as a png file into a pixbuf ready for rendering.

The Gdk::Pixbuf can be rendered by setting it as the source pattern of the Cairo context with Gdk::Cairo::set_source_pixbuf(). Then draw the image with either Cairo::Context::paint() (to draw the whole image), or Cairo::Context::rectangle() and Cairo::Context::fill() (to fill the specified rectangle). set_source_pixbuf() is not a member of Cairo::Context. It takes a Cairo::Context as its first parameter.

Here is a small bit of code to tie it all together: (Note that usually you wouldn't load the image every time in the draw signal handler! It's just shown here to keep it all together.)

void MyArea::on_draw(const Cairo::RefPtr<Cairo::Context>& cr, int width, int height)
{
  auto image = Gdk::Pixbuf::create_from_file("myimage.png");
  // Draw the image at 110, 90, except for the outermost 10 pixels.
  Gdk::Cairo::set_source_pixbuf(cr, image, 100, 80);
  cr->rectangle(110, 90, image->get_width()-20, image->get_height()-20);
  cr->fill();
}
